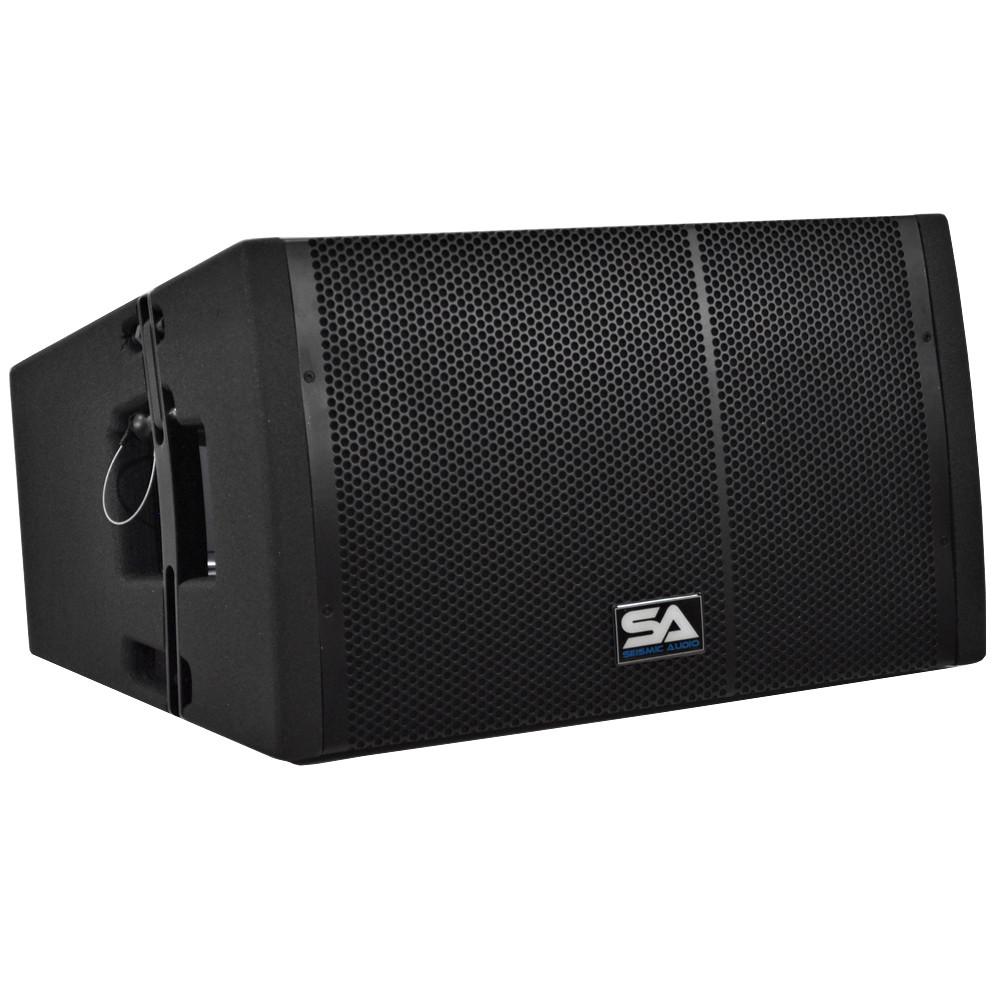

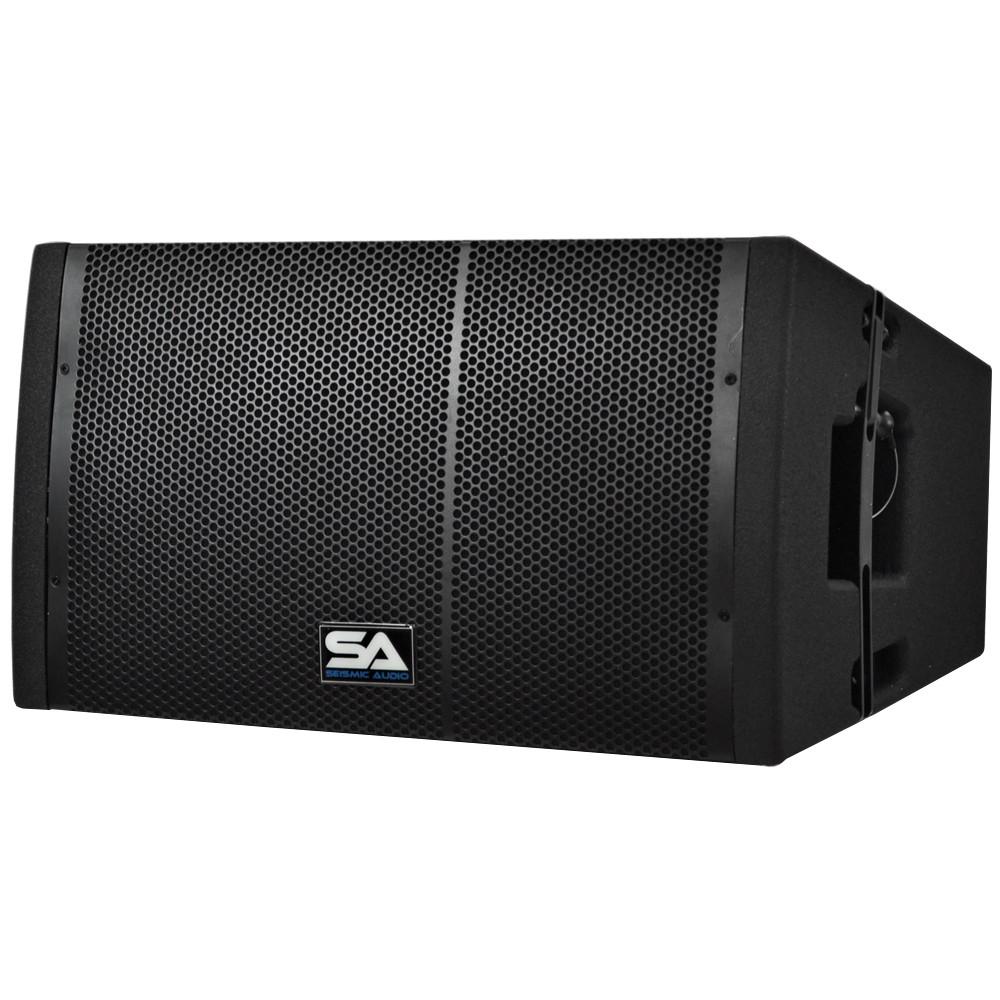

Powered 12 Inch Line Array Speaker with Dual Compression Drivers
- Model: SAXLP-12A
- Contents: One Premium Powered 12" Line Array Speaker
- Application: Line Array Sound Reinforcement
- Active / Passive: Active (Powered)
- Power Rating: 300 Watts RMS; 600 Watts Peak
- Nominal Impedance: 8 Ohms
- Woofer: 12" Loudspeaker
- Magnet Size: 75 oz
- Voice Coil: 3" Voice Coil
- Tweeter/Horn: 2 x 1" Titanium Compression Drivers / Fiberglass Horn
- Frequency Response: 48Hz - 20kHz
- Sensitivity: 97 dB
- Maximum SPL: 130 dB
- Coverage Pattern: 60 x 25

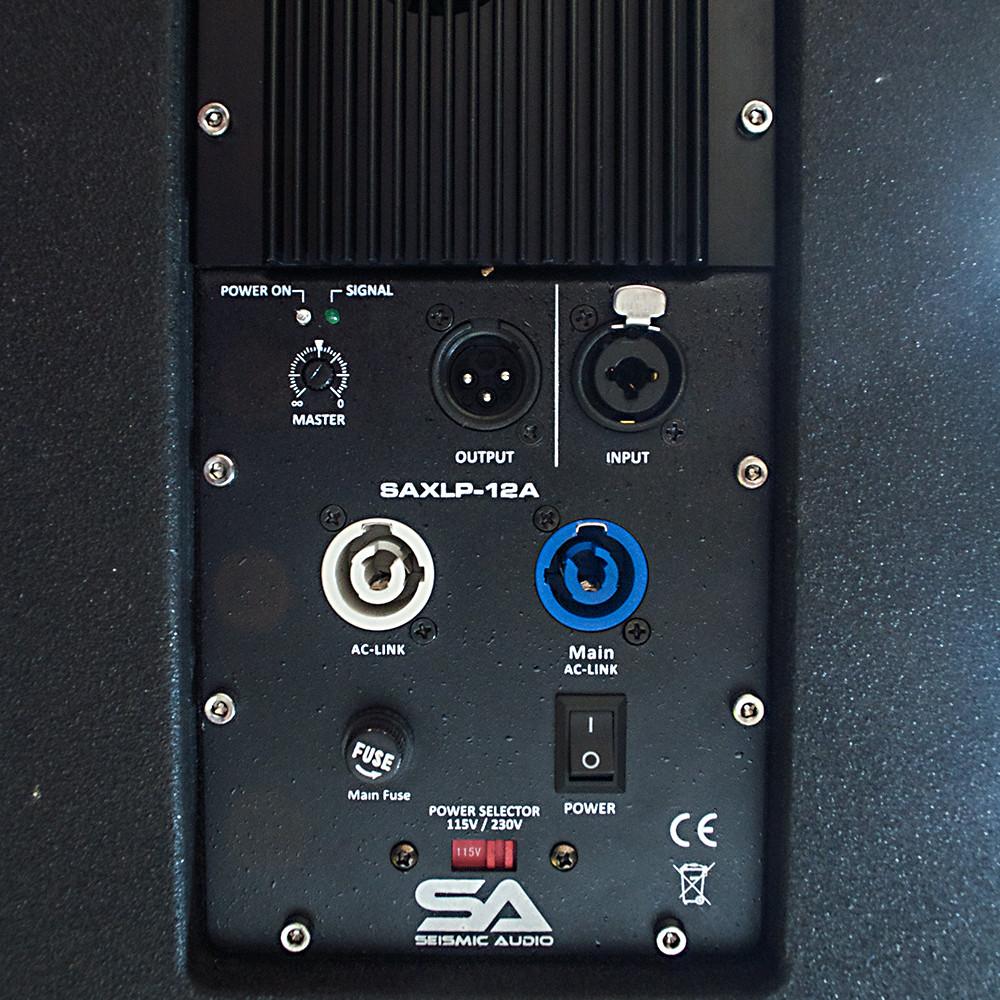

- Connector(s): Balanced XLR / 1/4" Combo line level input, Balanced male XLR full-range line level out, powerCON® compatible power connector AC In, powerCON® compatible power connector AC Out
- Grill: Powder Coated Steel
- Enclosure: All Birch Plywood with Black textured coating

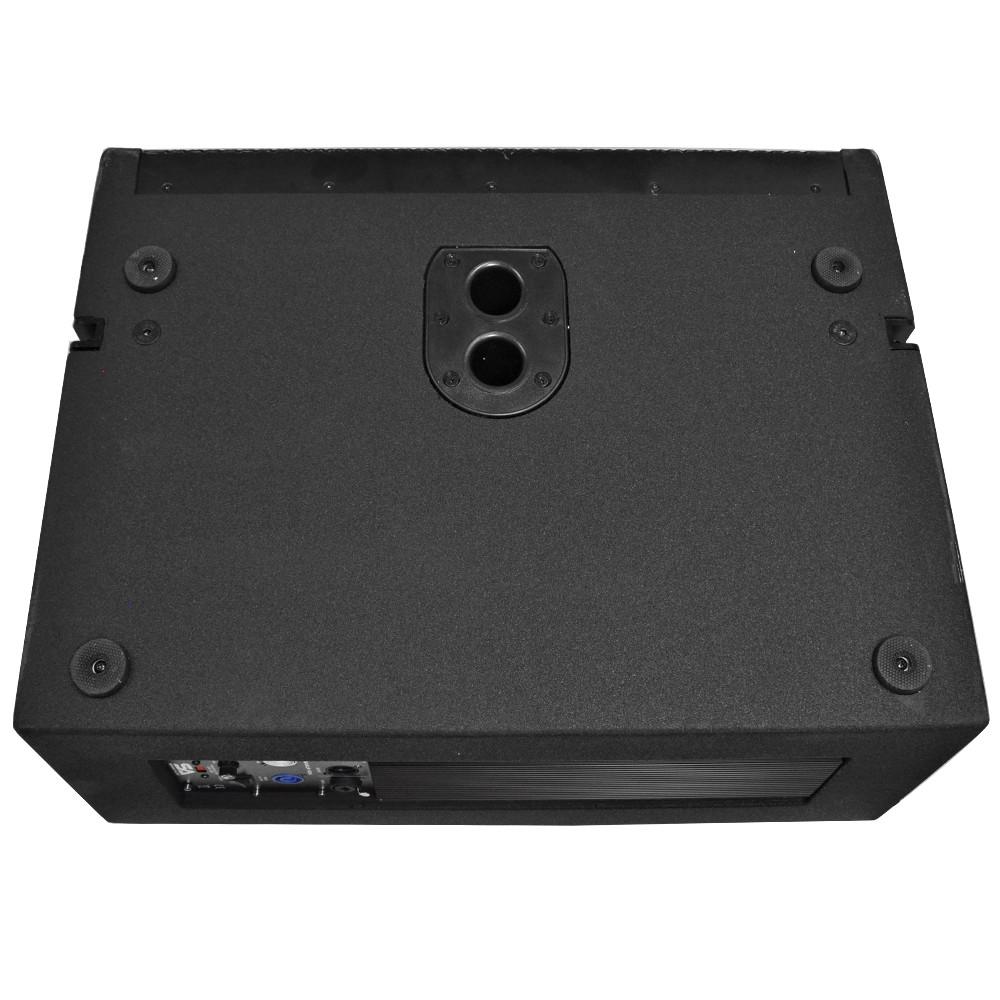

- Mounting: Line Array Frame Mountable and Pole Mount Cup

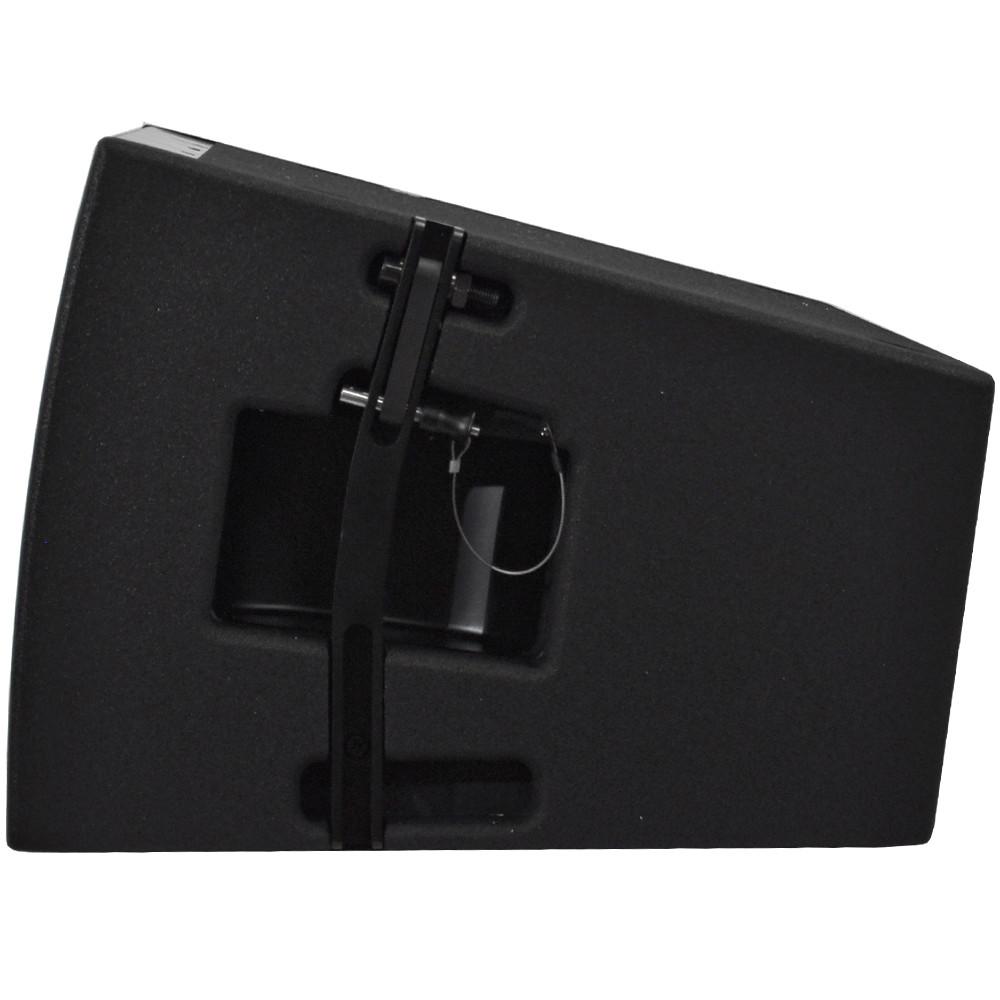

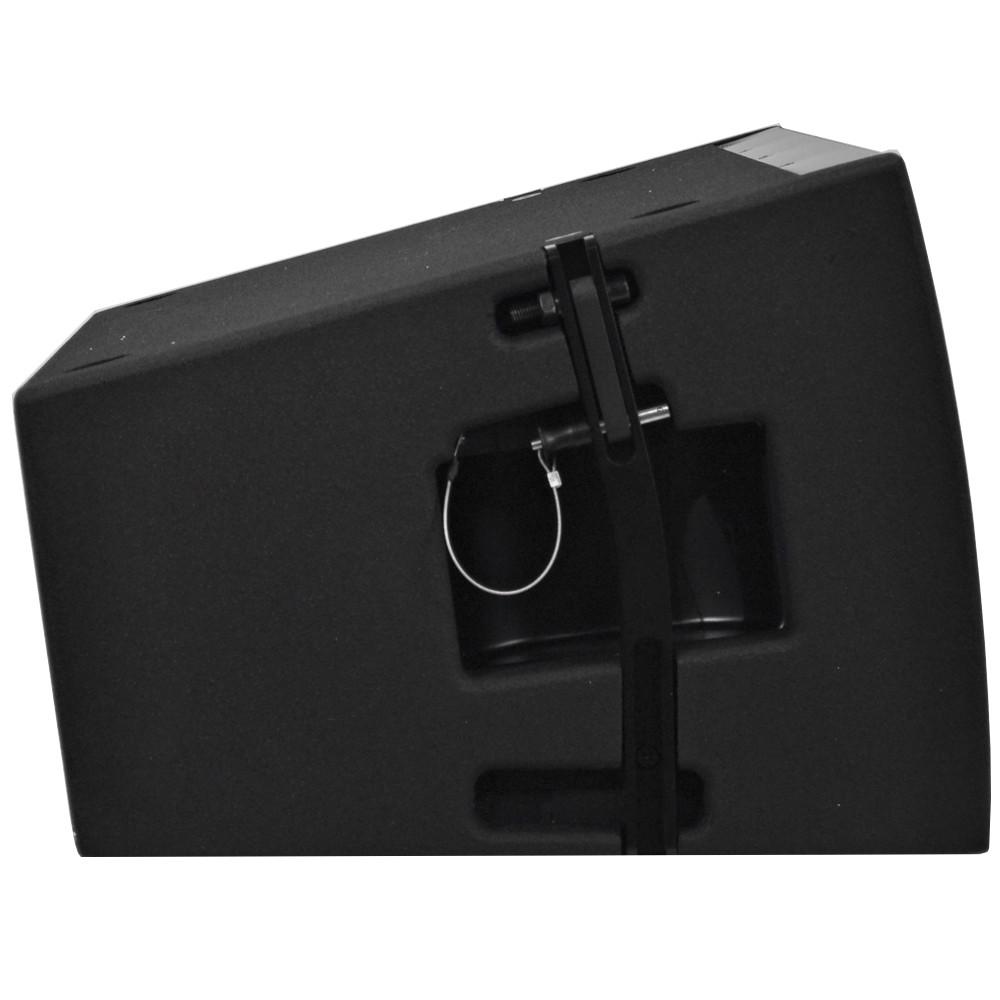

- Suspension / Mounting: High Intensity Aluminum Suspension Parts
- Amplifier Type: Class AB Amplifier with Cooling Fan
- Indicators: Power Indicator and Signal Indicator
- Controls: Master Volume and Power On/Off Switch
- AC Power Input: Universal power supply 100 - 240 VAC
- Dimensions: 18.5" x 24.5" x 14.25"
- Weight: 66.5 lbs per Cabinet
- Warranty: One Year Warranty
